MappingModeler#

The MappingModeler tool is one of the main components of SousLeSens, a web application for managing ontologies and knowledge graphs built around the Semantic Web framework.
It is designed to create semantic knowledge graphs from SQL database sources or CSV data.

UI overview#

Terms#

Source: The current source launched in the tool. It is displayed in the top panel.
Data Source: Refers to the original source of data — either a CSV file or a SQL database connection.
Mappings: Refers to the semantic model created from the data source. The semantic model consists of nodes and edges — where nodes represent ressources, and edges represent properties between them.

Nodes

A node can be of four types:

Class – Represents a class from an ontology model.

Column – Represents a column from the data source and appears in orange on the graph.
Typically, a column is linked to a class node via an rdf:type relation, which is the standard semantic link for defining types.

Virtual Column – Used to model intermediate or implicit objects not explicitly described in the data source. For example, creating a class for a job acquisition event that is implied but not present as a column.

Row Index – Represents an individual row of the dataset. It is useful when each row carries meaningful information and must be referenced explicitly.

Edges (or Properties)

An edge can be of two types:

Object Property – A relationship between two classes or two individuals in the graph.
When creating a relation between two classes, MappingModeler automatically suggests all suitable properties based on the top ontology.

Datatype Property – An attribute that links a class (or individual) to a literal value (e.g., string, integer, date).
Datatype properties are not modeled as classes and are only visible in the Technical Mappings view, not in the Column Mappings view.

Literal:

Represents values such as strings, integers, dateTimes, etc.

URI (Uniform Resource Identifier)

Each class uses a URI to uniquely identify its instances. A URI is often generated using a label column from the data source (e.g., an ID or name).
URIs can also be automatically generated (randomIdentifier).
Alternatively, blank nodes (nodes without a URI) are used for intermediate or auxiliary elements that don’t require a global identifier.

URI Type

Each class has a URI type:

fromLabel: The URI is generated from a label column in the data source.

blankNode: The ressource does not have a URI and is represented as a blank node.

random Identifier : The resource has random generated URI

Global Overview#

The Lineage UI is structured around three main components:

  • Left Panel with four tabs : Data Sources, Column Mappings, Technical Mappings, and Triples.

  • Whiteboard: Provides a visual representation of the mappings and allows users to interact with and modify them.

  • Right Panel: Includes buttons related to the whiteboard, offering common actions available across multiple tools.

The Top Panel is shared across all tools in the application. However, its content adapts based on the currently selected tool. For more information, refer to the Global Overview section in the Lineage user documentation.

Left Panel : Data Sources Tab#

This panel displays a tree view of the different data sources in your project. These sources are grouped by type (CSV files or databases).

When the MappingModeler tool is launched, this tab is shown by default, allowing you to select a current data source by left-clicking on it. A current data source must be selected to perform any mapping actions.

If no data sources are listed in the tree, you can add one by following the steps in the Add a Data Source tutorial section.

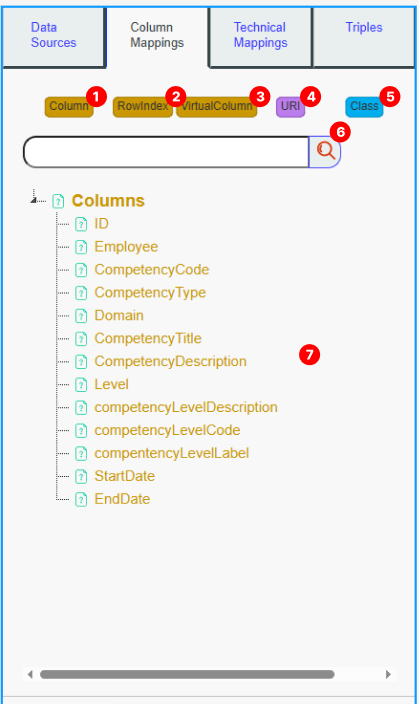

Left Panel : Columns Mappings#

This tab allows you to perform structural mappings by defining which columns you want to map, their types, and how they are linked.

Once a resource node is mapped, Run Mappings will apply the mappings to each row of the currently selected data source. For example, if you map the ID column to the Employee column using the rdfs:label property, then for each row in the ID column:

  • a node will be created using the ID value as its identifier,

  • this node will have the corresponding value from the Employee column as its label.

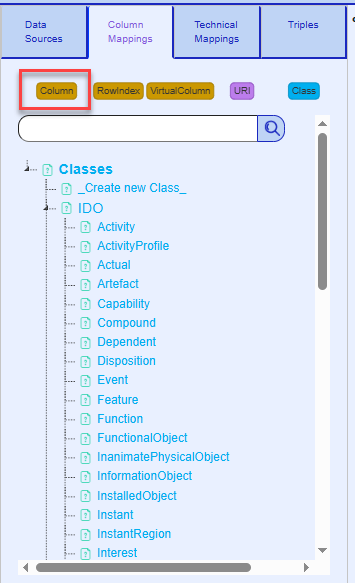

  1. Column button : : Displays a list of all columns from the selected data source in the Search Panel (7). Clicking on a column will create a Column node on the Mapping whiteboard and display the Class button (5), which allows you to link the column node to a class node (see Add Column Mappings for more details). Right-clicking opens a menu to view data related to that column.

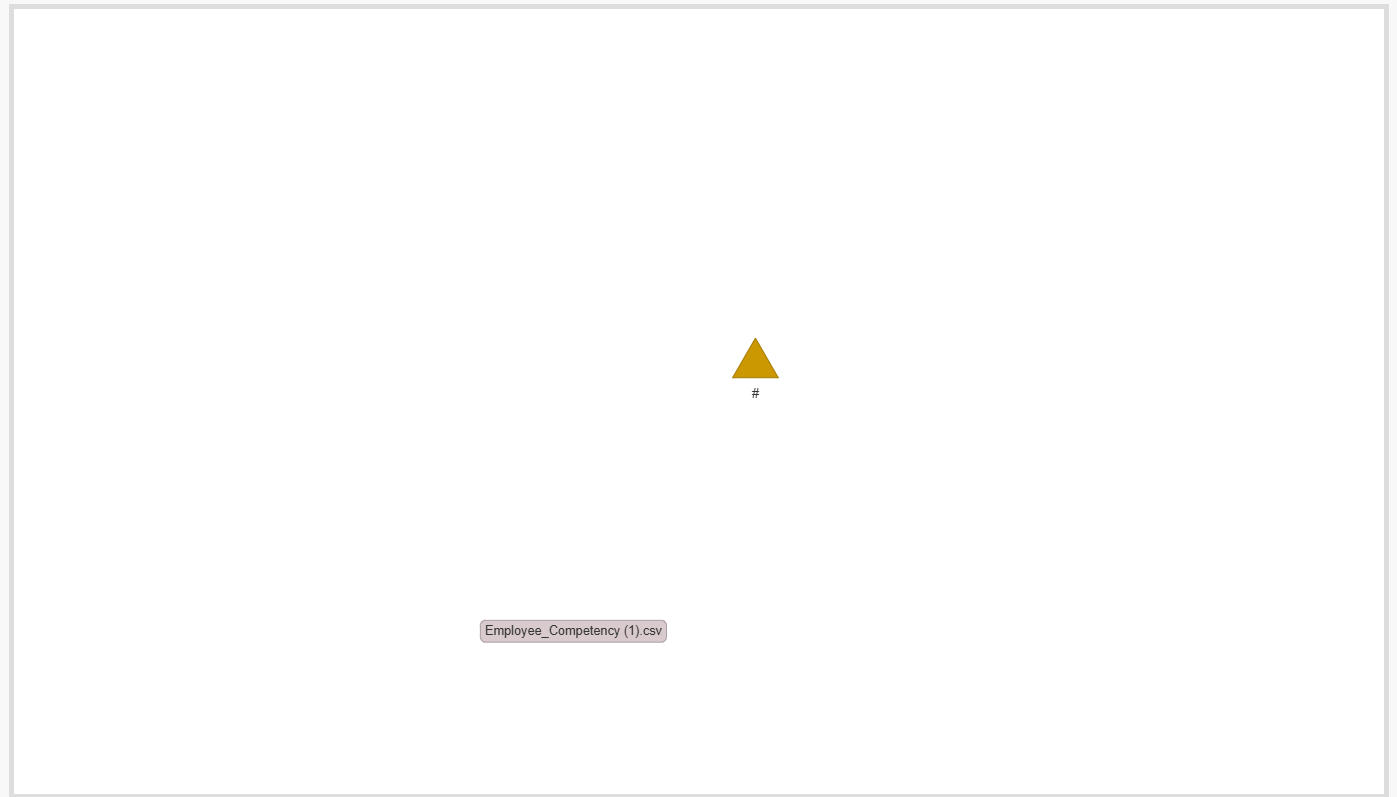

  2. Row Index : Creates a # node representing a row on the Mapping whiteboard and displays the Class button (5) to link it to a class node.

  1. Virtual Column : Triggers a pop-up to choose a name for your virtual column and creates a virtual column node with the chosen name. It also displays the Class button (5), allowing you to link it to a class node.

  2. URI : Triggers a bot that helps you create a resource column with the chosen type in the mappings. When creating a triple mapping, all URI columns will create a resource with the selected URI.

  3. Class button : Displays all classes of the source and its imports. Clicking on a class will add it to the mappings. Clicking on Create New Class will trigger a bot to help you create a new class. Right-clicking on a class will present a menu with the option to delete the class.

  4. Search Bar : Filter the search panel using your keyword.

  5. Search Panel : List resources based on the clicked button: Display all classes for the “Class” button (5) and all columns for the “Column” button (1).

Left Panel : Technical Mappings#

This panel is based on the mappings you’ve done in the Column Mappings tab. It is recommended to visit this tab after completing the structural mappings with the Column Mappings tab. The mapping whiteboard in this tab differs from the column mappings whiteboard, as it focuses on representing technical mappings. This tab allows you to enhance your mappings by adding technical details such as resource labels, types (Class or Individual), base URI, datatype properties, and more. For more details, see the tutorial section.

  1. Ressource nodes Tree:

All resource nodes defined in the Column Mappings (columns, URIs, virtual columns, and row index) are listed in this tree. For each node, its technical mappings are displayed below, including details such as whether they are Individuals or Classes, their labels, URI types, and datatype properties. By right-clicking a specific technical mapping, you can delete it.

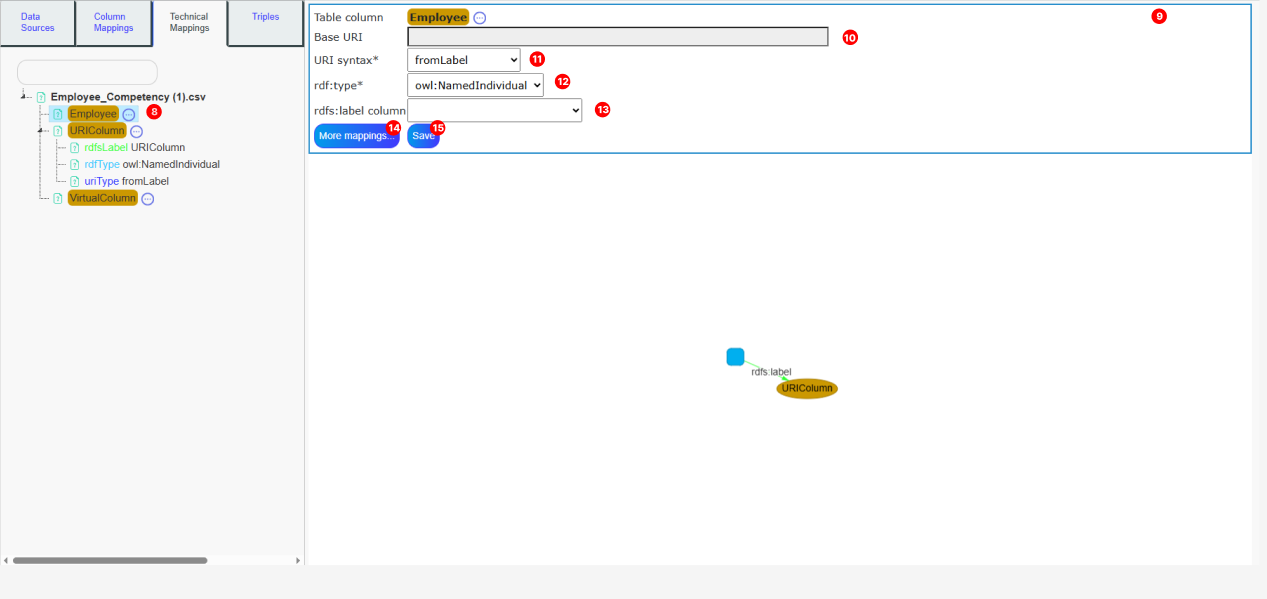

  1. Detailed Mapping panel : This panel displays information about the resource node clicked in the Resource Nodes Tree (8). It is recommended to fill in all the inputs in this panel for each resource node, as this will ensure the mappings are complete and the knowledge graph can be effectively used by other tools. This panel also displays new buttons, which are described below.

  2. Base URI :

The base URI used for URI construction of the resource. If the base URI is empty, the source graph URI will be used instead. See URI Syntax (11) for more details.

  1. URI syntax :

-fromLabel: The URI for this resource node will be constructed using the Base URI + the row value of the resource.

-Blank node: All resources will be assigned blank node URIs with the format <_:b[randomHexaId]>.

-randomIdentifier: All resources will have the following URI: Base URI + randomHexaId.

  1. Rdf:type :

Choose whether the resource created will be an Individual or a Class. It can also be left empty for specific use cases.

  1. Rdfs:label :

Columns values are used to build the labels for this resource node. This field can be left empty.

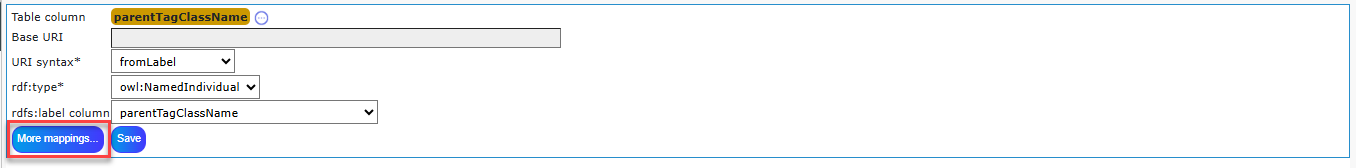

  1. More mappings button :

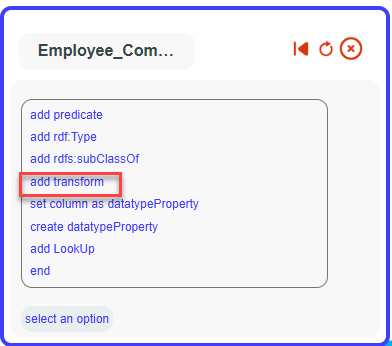

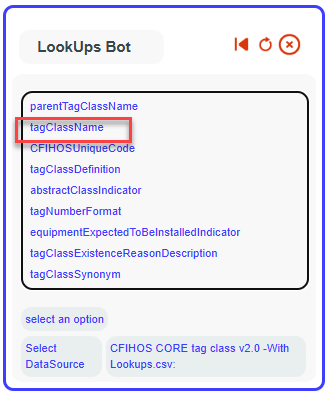

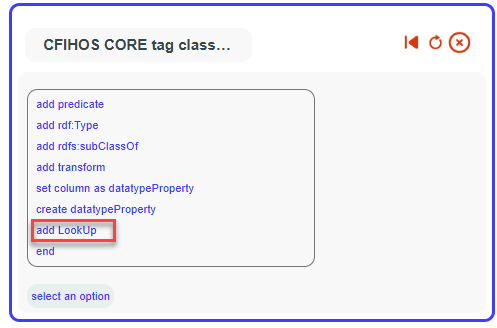

A bot will appear to assist you in adding specific mappings, such as datatype properties, comments, transformations, and more. The tutorial provides a detailed explanation of the various possibilities available.

  1. Save : Save the values you’ve filled in for the resource nodes

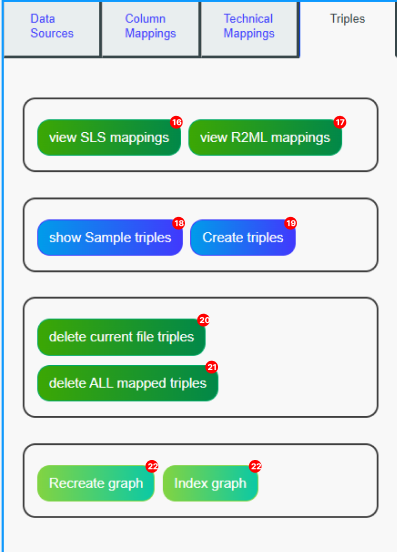

Left Panel : Triples#

This panel provides buttons to run and test the mappings, delete the triples created by the mappings, or index them so they can be referenced in other tools.

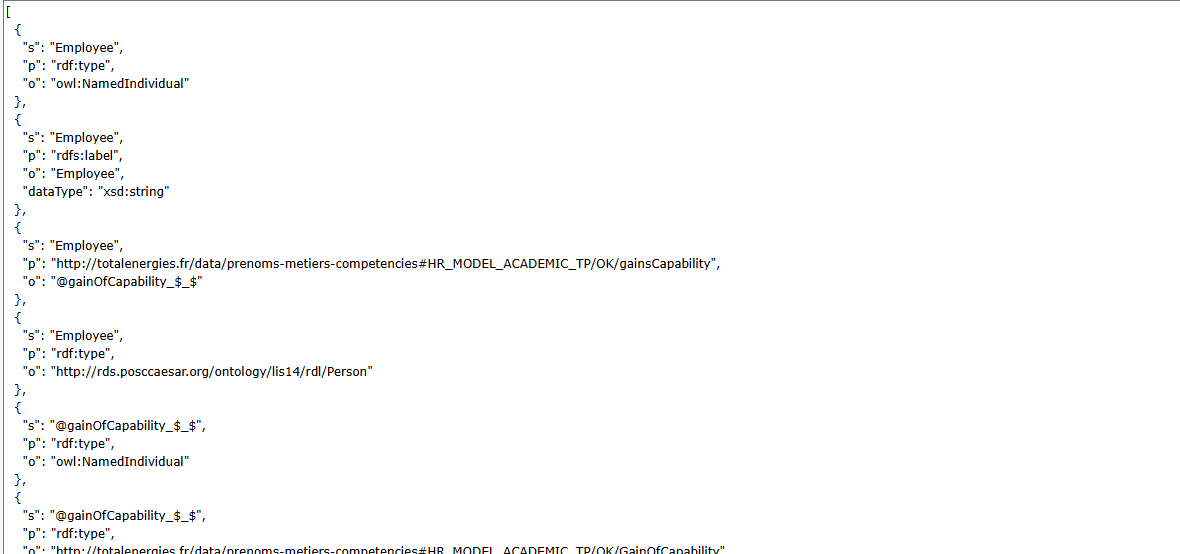

  1. View SLS mappings : The SLS API uses a specific format to execute mappings. This button displays the mappings that are sent to the server when you run your mappings, based on the data you’ve filled in the MappingModeler.

  2. View R2ML mappings: See mappings in R2ML format.

  3. Show sample triples : Preview the triples that will be created by running your mappings with the current data source.

  4. Create triples :

Execute the mappings using your current data source.

  1. Delete current file triples : All created mappings will have a metadata triple associated with the file name. This action will delete all triples containing this metadata.
    Warning: If your resource is shared across multiple files, it could be deleted with this button.

  2. Delete all mapped triples : Triggers the deletion of all triples generated by MappingModeler for current source.

  3. Recreate graph : This action deletes all triples previously generated by the MappingModeler (see button 21), then automatically runs the mappings again for each data source defined in your project.
    Useful to refresh the knowledge graph based on updated mappings or modified source data.

  4. Index graph : This action indexes all triples generated by the MappingModeler so they can be referenced and used in search tools across the platform. It ensures that your data is discoverable and properly linked within other SousLeSens tools.

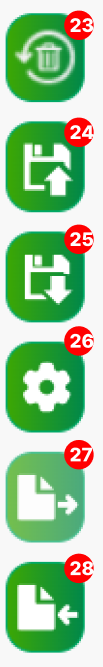

Right Panel : Mappings buttons#

  1. Clear all mappings : Clears all the mappings

  2. Save Mappings: Saves mappings

  3. Load Mappings: Load saved mappings.

  4. Display : Opens a menu to modify the graph display parameters, such as spatialization algorithms, node distance, etc.

  5. Export mappings: Exports the current mappings whiteboard in various formats (GraphML, SVG, CSV, PlantUML, JSON).

  6. Import mappings : Allows you to import mappings from a JSON file exported by SousLeSens. The file should follow the vis.js network format with an added mappings property specific to SousLeSens. This enables you to reload and reuse existing mapping configurations easily.

Shortcuts#

Right-clicking on a node opens a contextual menu with several actions depending on the node type:

  • For all nodes:

-Remove from mappings: Deletes the node from the current mappings.

  • For column nodes:

-Show sample data: Displays a preview of data from the associated column.

- Detailed mappings: Opens the detailed mapping configuration, similar to the panel in the Technical Mappings tab.

  • For class nodes:

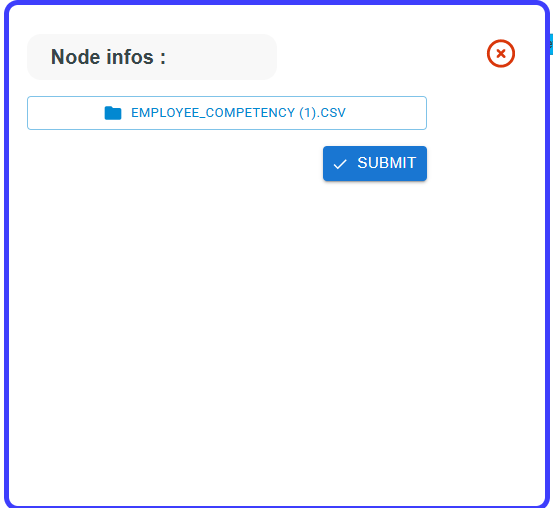

*-*Node Infos: Opens a window showing detailed information about the class node (see Node Infos section in the Lineage user documentation for more details).

When you Ctrl + click on two nodes, the Search Panel (7) displays a list of properties that are authorized based on domain and range compatibility between the selected nodes.

Clicking on one of these properties will create a semantic link between the two nodes using the selected property.

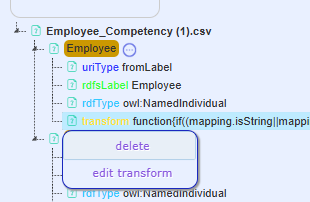

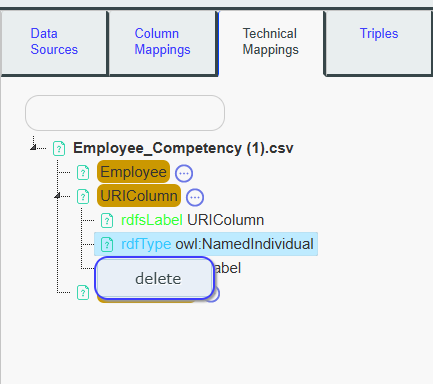

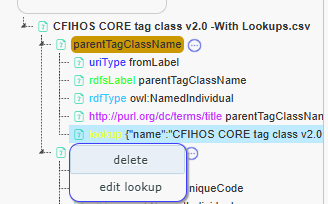

When you right click on the Detailed Mapping Tree, you’ll get different options depending on the type of mapping selected:

  • For all mappings:
    – Delete a specific mapping.

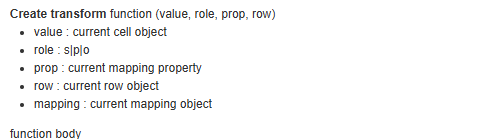

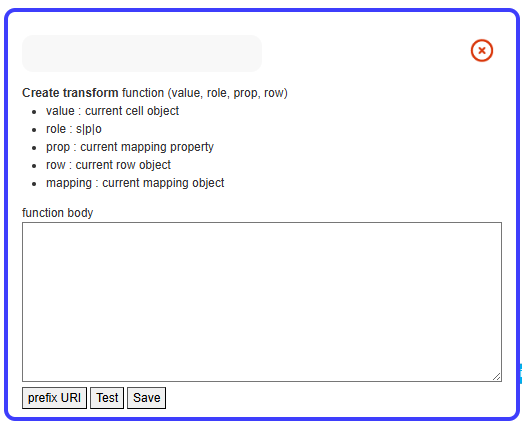

  • For specific mappings such as Transforms, Lookups, or Functions:

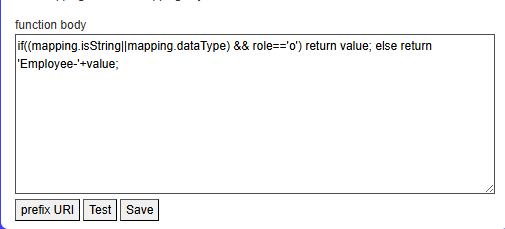

    – Edit value to modify the content or behavior of the mapping.

Tutorial#

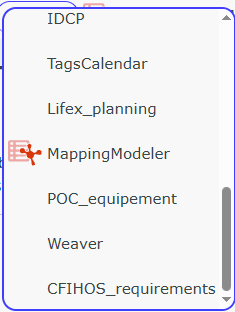

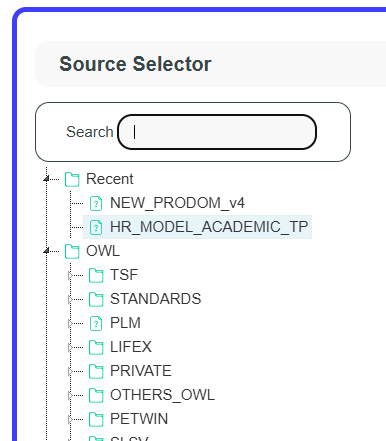

Let’s open the Mapping Modeler tool in SousLeSens, and select the source HR_MODEL_ACADEMIC_TP source.

A screenshot of a computer AI-generatedcontent may be incorrect.

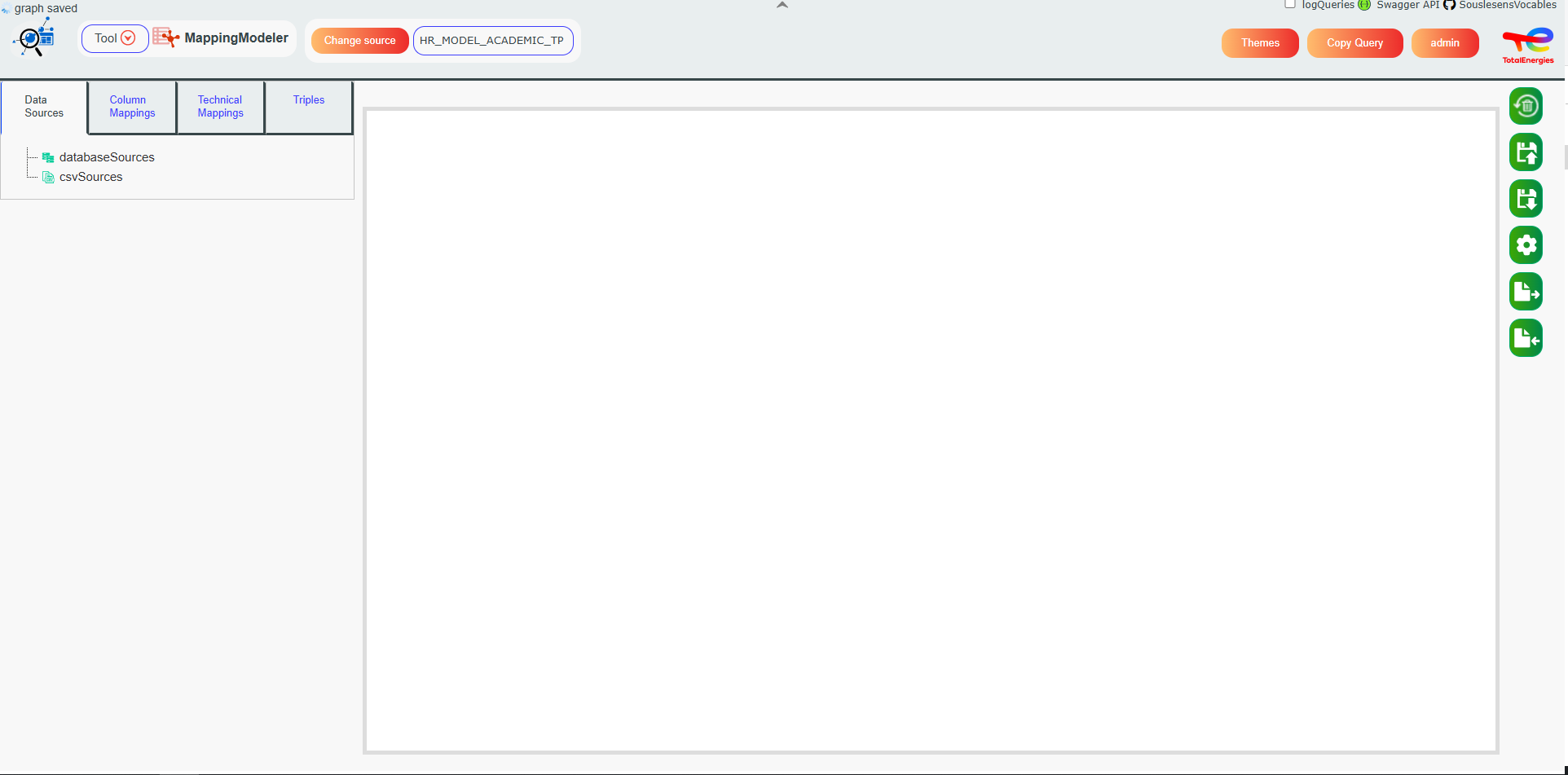

Now, the Mapping Modeler tool opens.

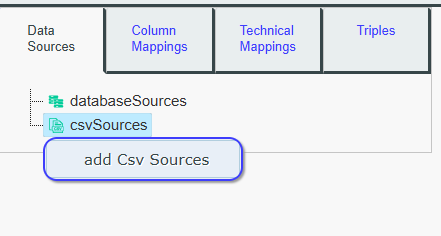

Right-click on the csvSources section in the Data Sources tree, then add the following CSV source.
A file selection window will appear, select your CSV file to import them into your source.

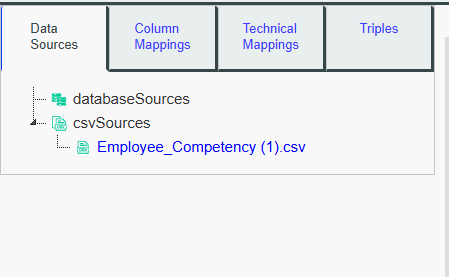

Your file is now imported into the Mapping Modeler tool and appears in the data source tree.
Click on it to select it as the current data source, so you can start defining mappings on it.

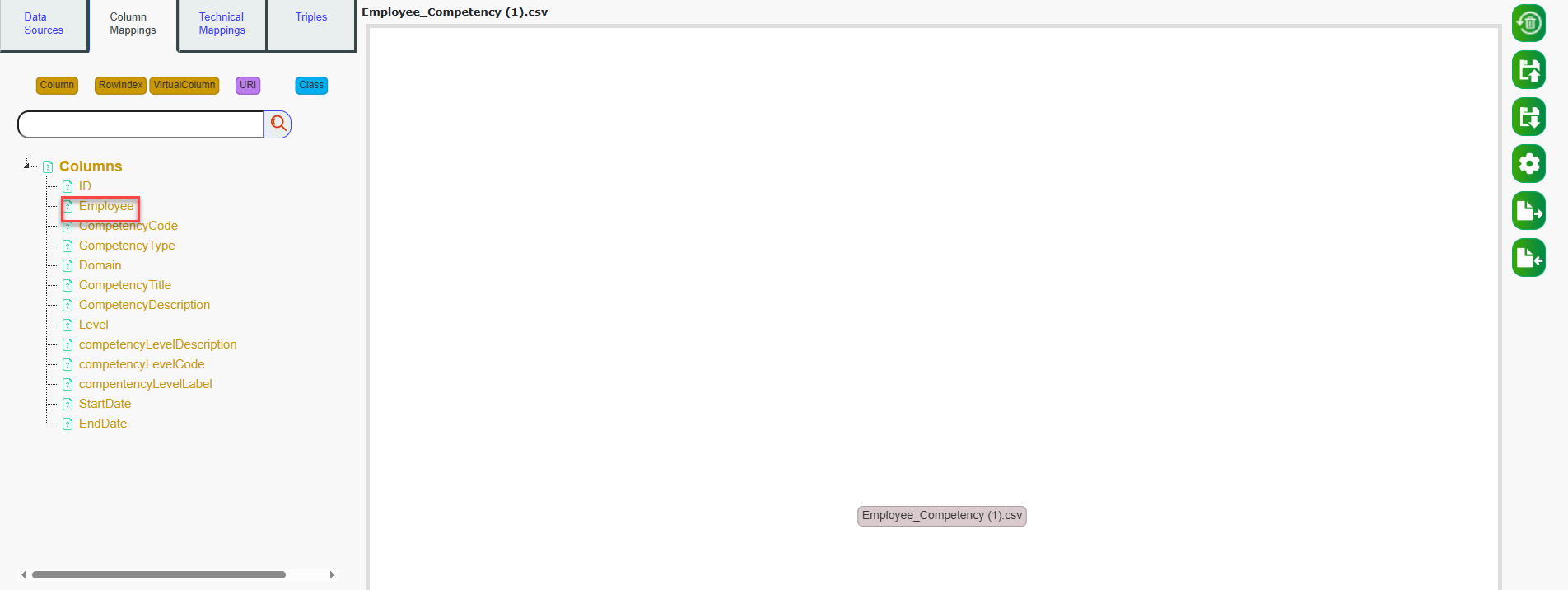

When you click on it, the Column Mappings tab automatically opens and lists all the columns from your file.
Now, click on Employee.

The column node “Employee” will now appear on the mappings graph.

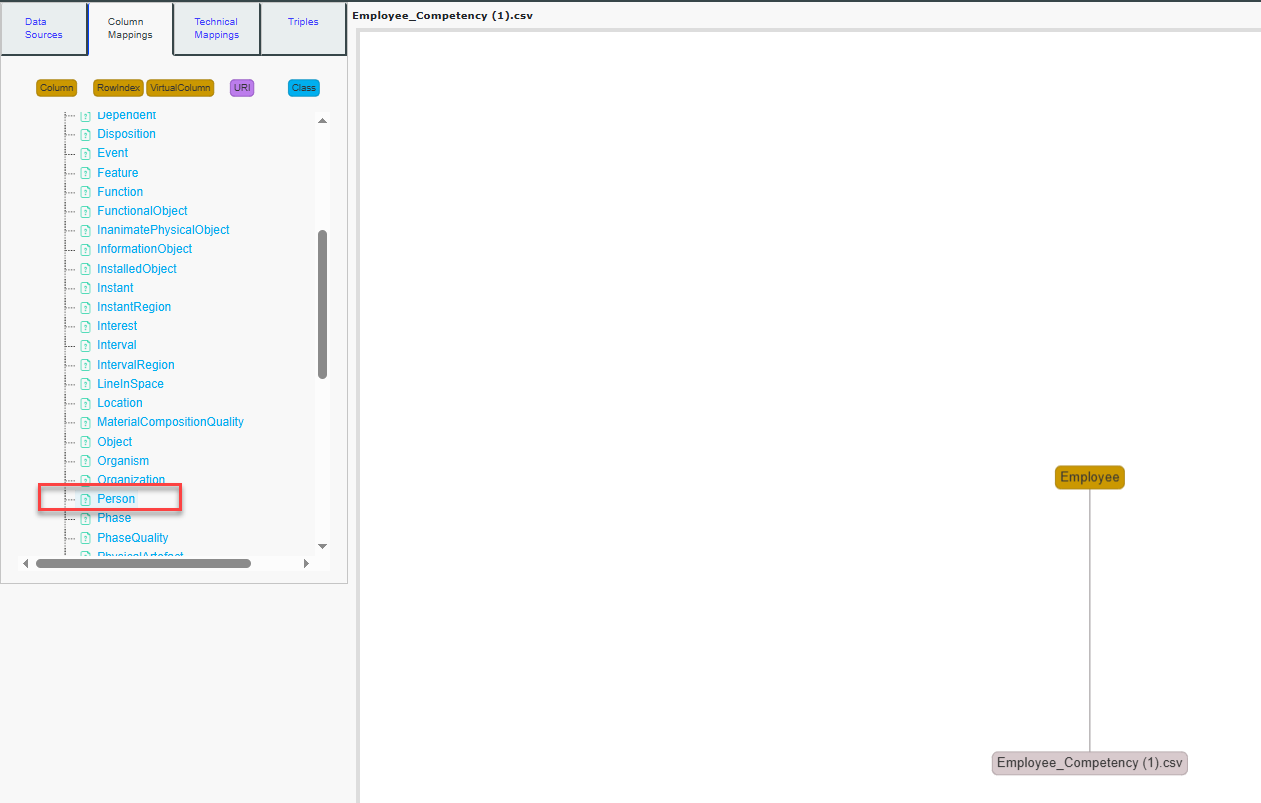

Next, click on Person to link the Employee column node to the Person class node.

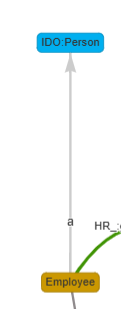

Your mappings whiteboard should now appear as illustrated in the image.

Now, let’s create a virtual column node named gainOfCapability.

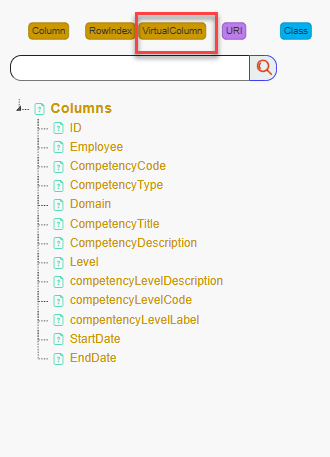

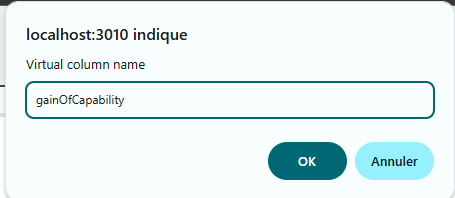

Click on the Virtual Column button, then enter gainOfCapability in the popup that appears. A new node named GainOfCapability will be added to the mappings whiteboard.

Note:

  • Virtual columns appear as orange squares.

  • Regular column nodes appear as orange rectangles.

  • Class nodes are displayed as blue rectangles.

After creating the virtual column, the search panel will list available classes to link it to. Since no class corresponds, we will create a new one.

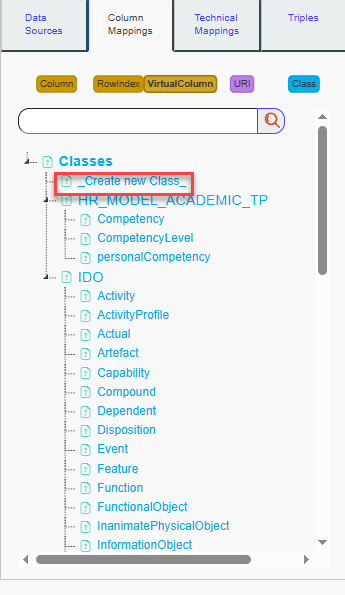

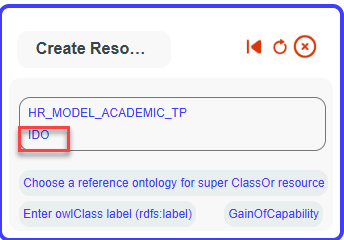

Click on Create new Class. A bot popup will appear.

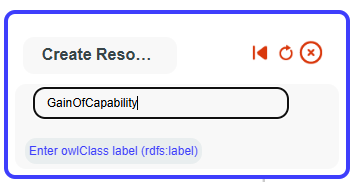

Fill in the Label field with GainOfCapability, and set it as a subClass of IDO:Activity..

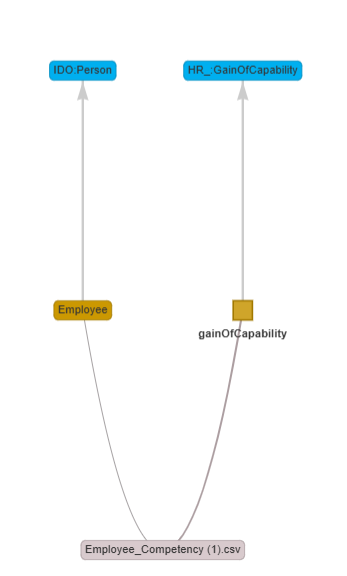

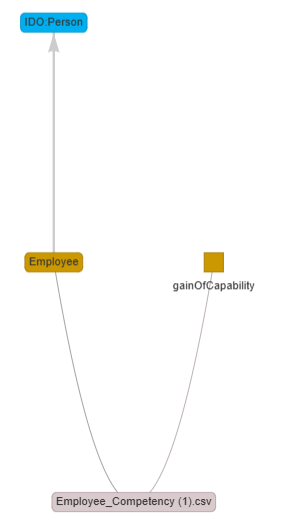

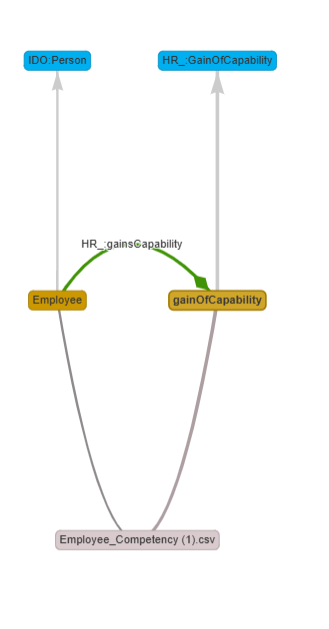

The new class is added to the tree. Click on it to select it.Your mappings whiteboard should now appear as illustrated in the image.

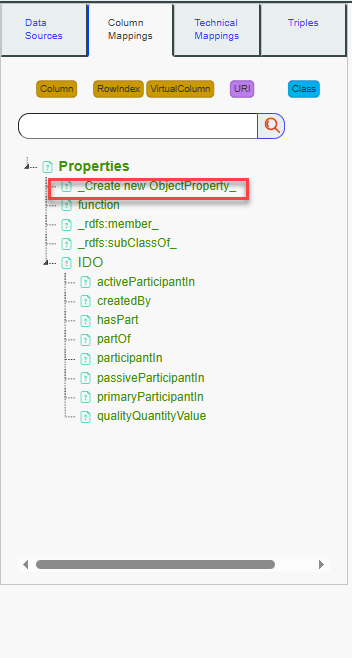

Now, Ctrl+Click on “Employee” and then Ctrl+Click on “gainOfCapability.” Authorized properties based on ranges and domains to link both nodes will be displayed on search panel. We can see that “participantIn” is a semantic match, but we want to be more specific and use the property “gainsCapability” to link the nodes. To do this, we will add a new Object Property by clicking on “_Create new ObjectProperty.”

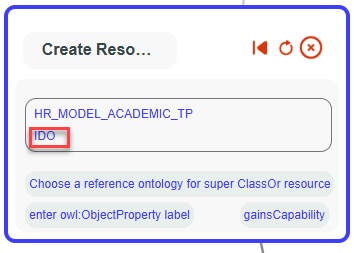

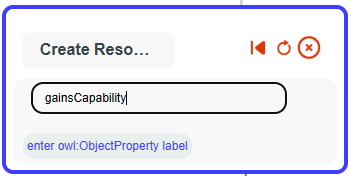

Then, a bot will appear. Fill in the label with “gainsCapability” and set it as a subProperty of “IDO:participantIn.”

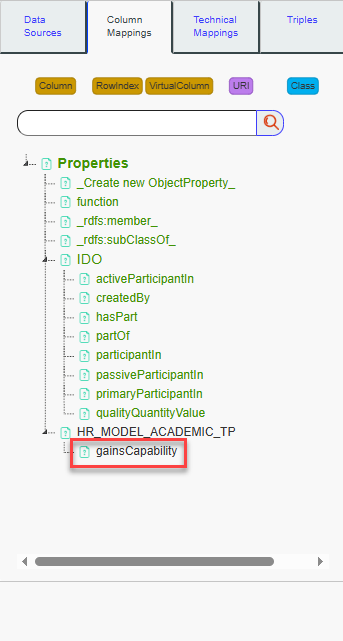

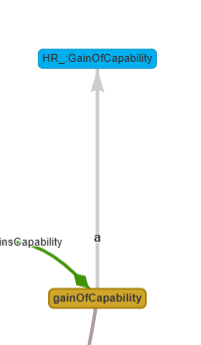

The new property will now appear, and you can select it. Once selected, the link between the two nodes will be created.

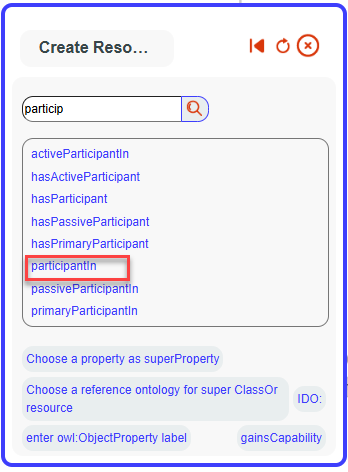

You can directly select participantIn or another property from this menu if needed. Now, let’s add the technical details necessary to properly run the mappings.

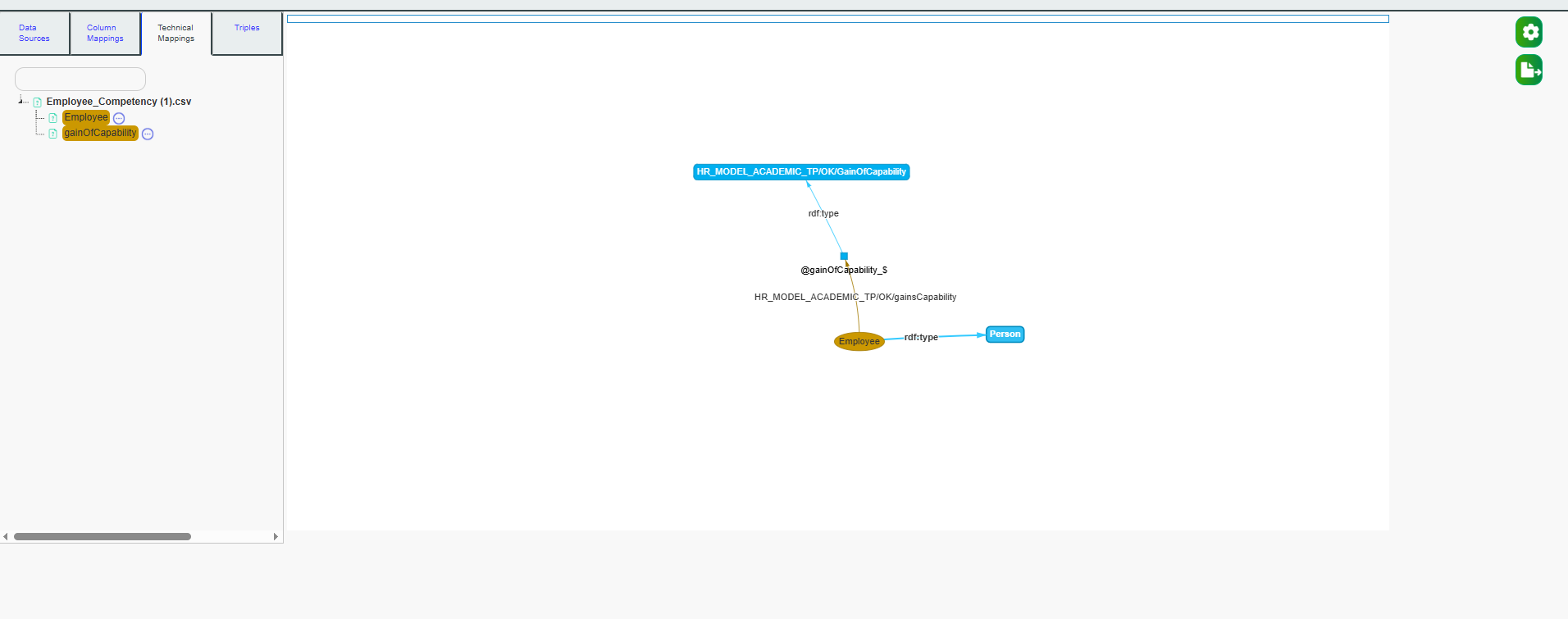

Select the Technical Mappings tab. The mappings whiteboard will display the mappings in a more technical and exhaustive way

To run the mappings, we now need to fill in the basic technical mappings so that the SLS API has the necessary information to execute the mappings correctly.

To begin, click on Employee.

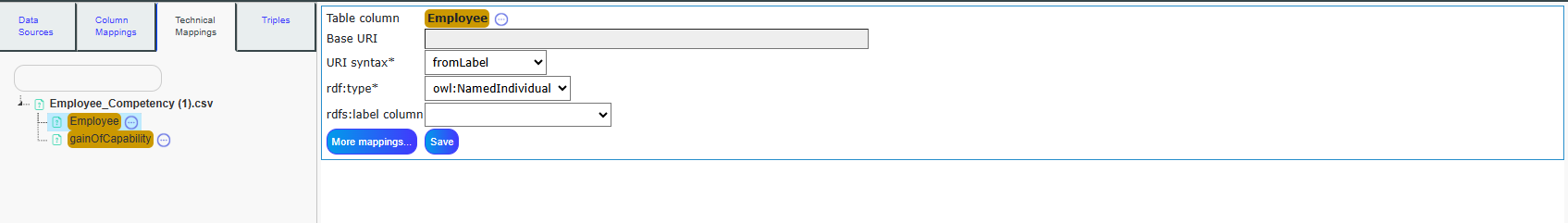

The detailed mapping panel (9) will appear. The URI syntax will be set to fromLabel, meaning that for each specific value in the Employee column, the URI created will be the baseURI (equivalent to graphURI if not filled) + the cell value.

For example, if the first row value of the Employee column is “Peter”, the URI created will be: http://totalenergies.fr/data/prenoms-metiers-competencies#HR_MODEL_ACADEMIC_TP/Peter

The values in the Employee column represent Individuals of the Person class, meaning each value is an instance of the Person class. In this case, we fill the rdf:type as owl:NamedIndividual because Peter is an instance of the Person class.

For each Employee value, the label will be the value itself. So, for example, Peter’s label will be “Peter”. Therefore, we fill rdfs:label with the value of Employee.

Note that the label is not always directly in the column itself. For example, we could build the URI from an ID column, and the label could come from the Employee column.

Once these mappings are filled in, you can save your changes by clicking on Save.

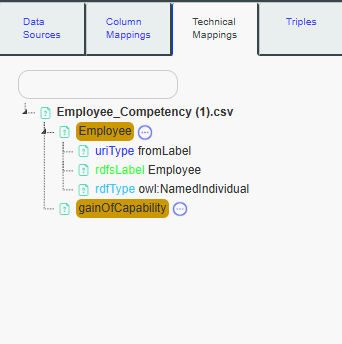

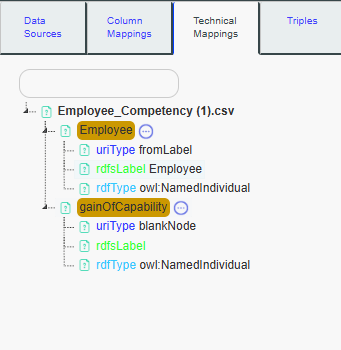

The detailed mappings for the Employee column will be set like this.

You can modify the detailed mappings for the Employee column at any time by clicking on it again and updating the information as needed. You can also delete a specific detailed mapping by right-clicking on it.

Now, let’s proceed with the same process for the gainOfCapability virtual column. Click on it to access its detailed mapping panel.

Since gainOfCapability is a virtual column, it does not have cell values directly associated with it. The purpose of this virtual column is to make explicit the concept that a person will gain a competency over time. This information is implicit in the CSV file but needs to be represented explicitly in the semantic knowledge graph.

- Blank Nodes: For virtual columns, it is recommended to use blank nodes. Blank nodes are typically used for intermediary resources, which is the case for gainOfCapability. By definition, virtual columns are intermediary nodes and thus benefit from being represented as blank nodes.

- Individuals: For each row, the gainOfCapability event (e.g., when a person gains a new competency) will be an instance of the gainOfCapability class.For example, if Peter gains a new competency, that specific event is considered an instance of the gainOfCapability class.

- rdfs:label: Since the event represented by gainOfCapability does not have a direct name in the data (as it’s implicit), the rdfs:label is not filled in for this virtual column.

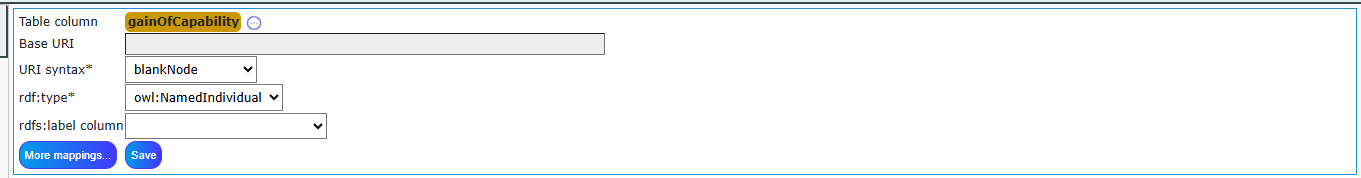

Once you have filled these details, you can save the mappings for the gainOfCapability virtual column.Here the detailed mappings.

To describe the event of the gain of capability along with the start date in our knowledge graph, we need to link the gainOfCapability event with a dateTime information. This can be done by creating a new Datatype Property.

Click on the gainOfCapability virtual column in the detailled mappings tree to select it.

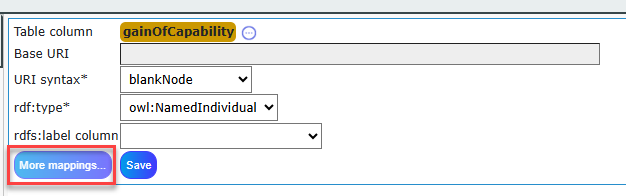

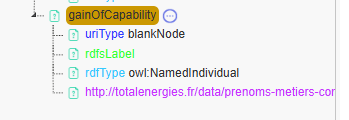

After selecting the gainOfCapability virtual column, you should see the option More Mappings. Click on it. This will open additional options for detailed mappings.

Once you click on More Mappings, you’ll be able to see more detailed configuration options to enrich your mapping process.

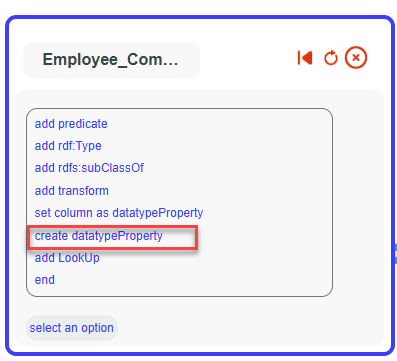

Click on Create Datatype Property

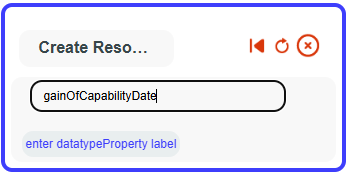

Set the label ‘gainOfCapabilityDate’ for our datatype property.

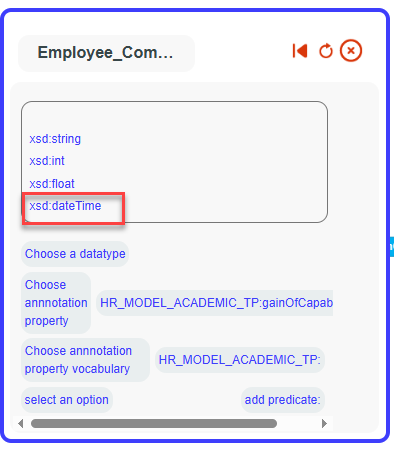

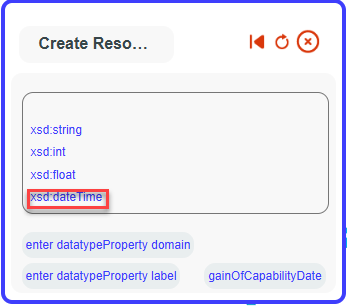

Select xsd:dateTime

Our datatype property is now created. We will associate it with our virtual column. Click again on ‘moreMappings

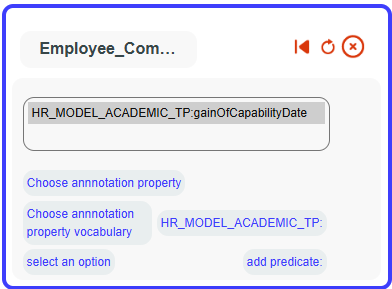

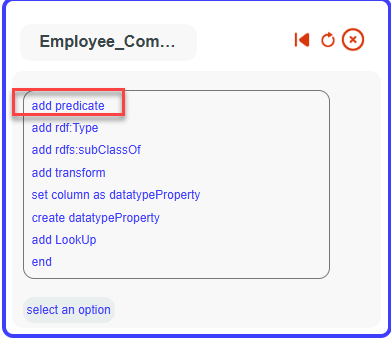

Then on add predicate.

Then select HR_MODEL_ACADEMIC_TP

And your new added datatype property

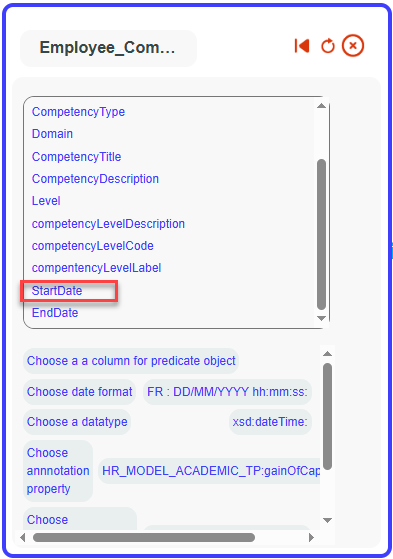

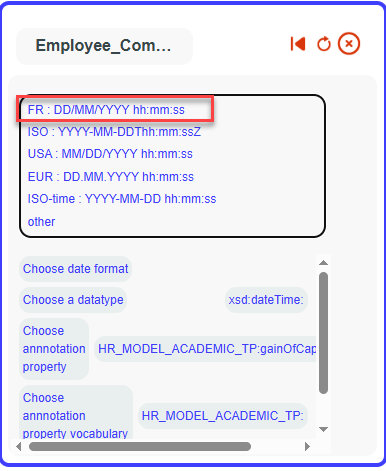

Select it as a dateTime with the FR format, using the values from the startDate column.
(Make sure to choose the correct format based on how dates appear in your data column.)

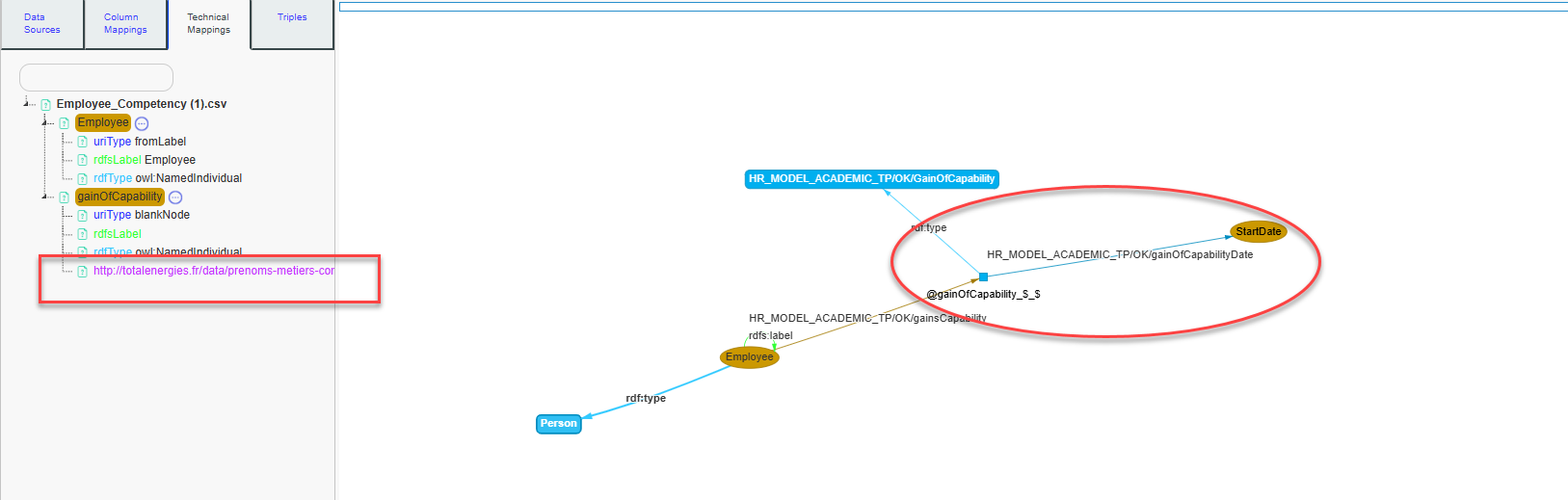

Your date has been successfully added to your mappings.

Our mappings are now complete. You can preview the triples that will be generated.

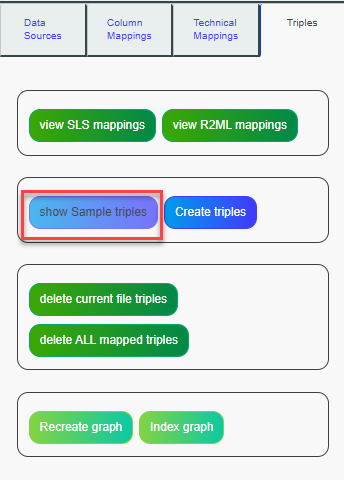

To do this, go to the Triples tab and click on Show Sample Triples.

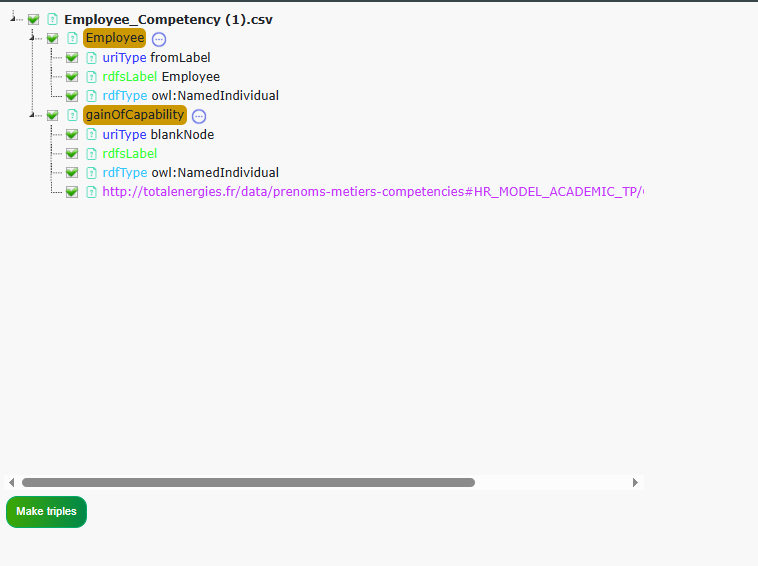

A tree will appear displaying all your mappings. You can select a specific subset from this tree to run your mappings only on the selected elements.

You can leave all items checked, then click on Make Triples.

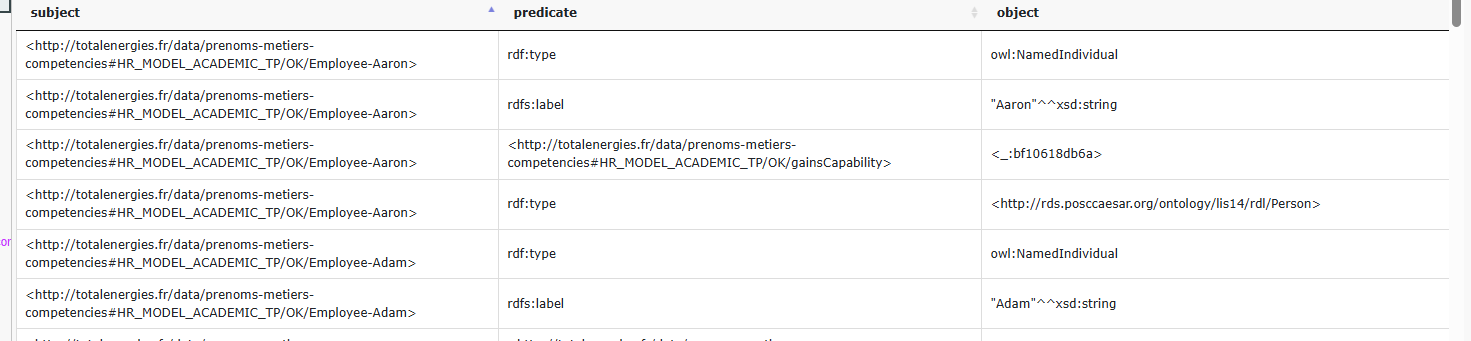

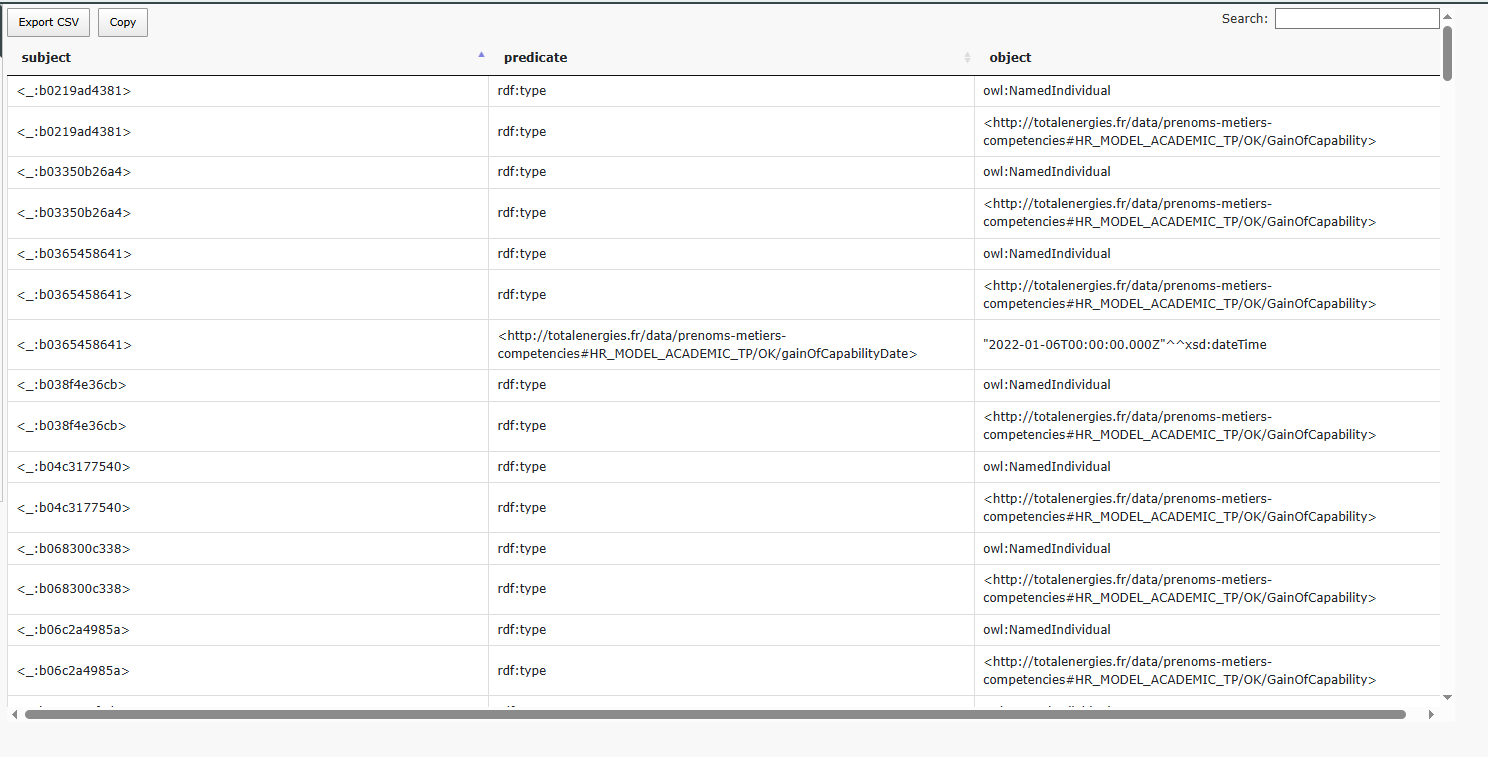

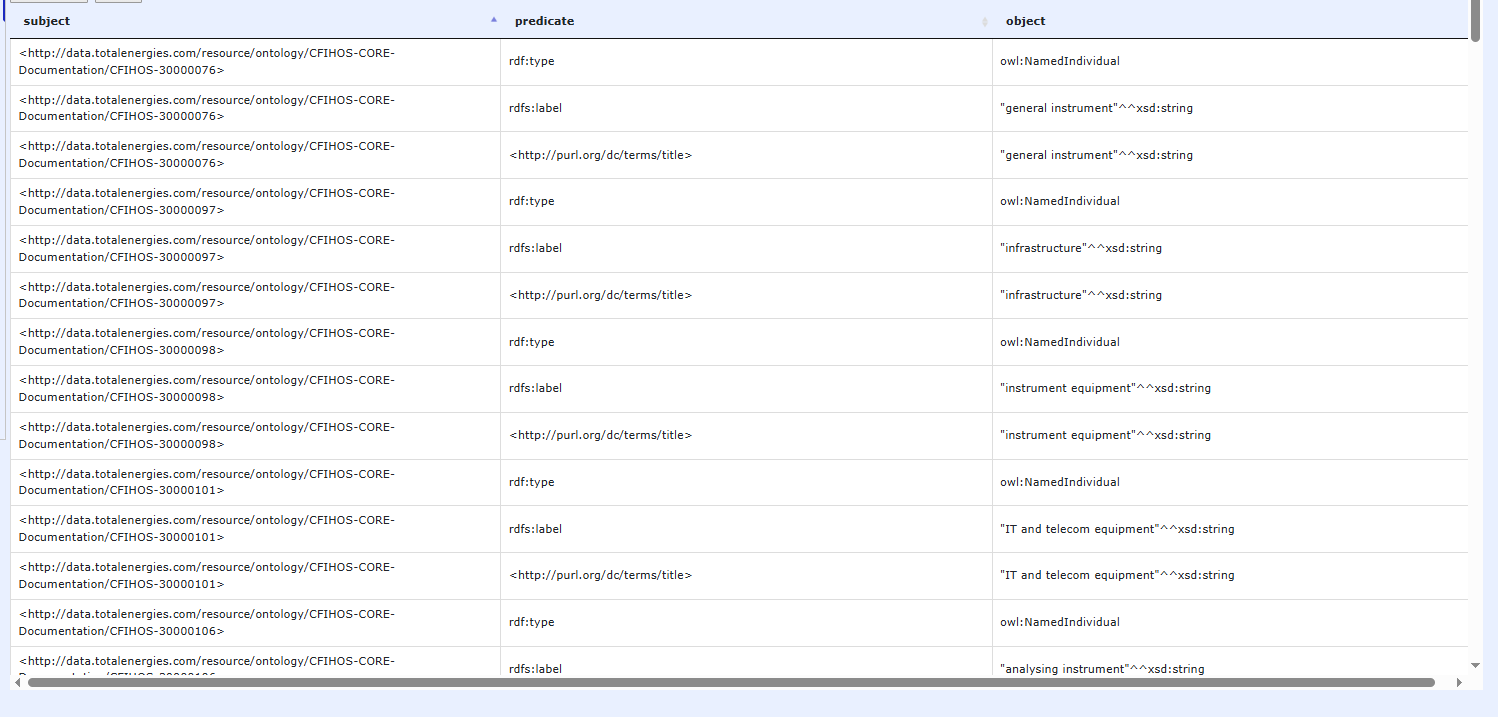

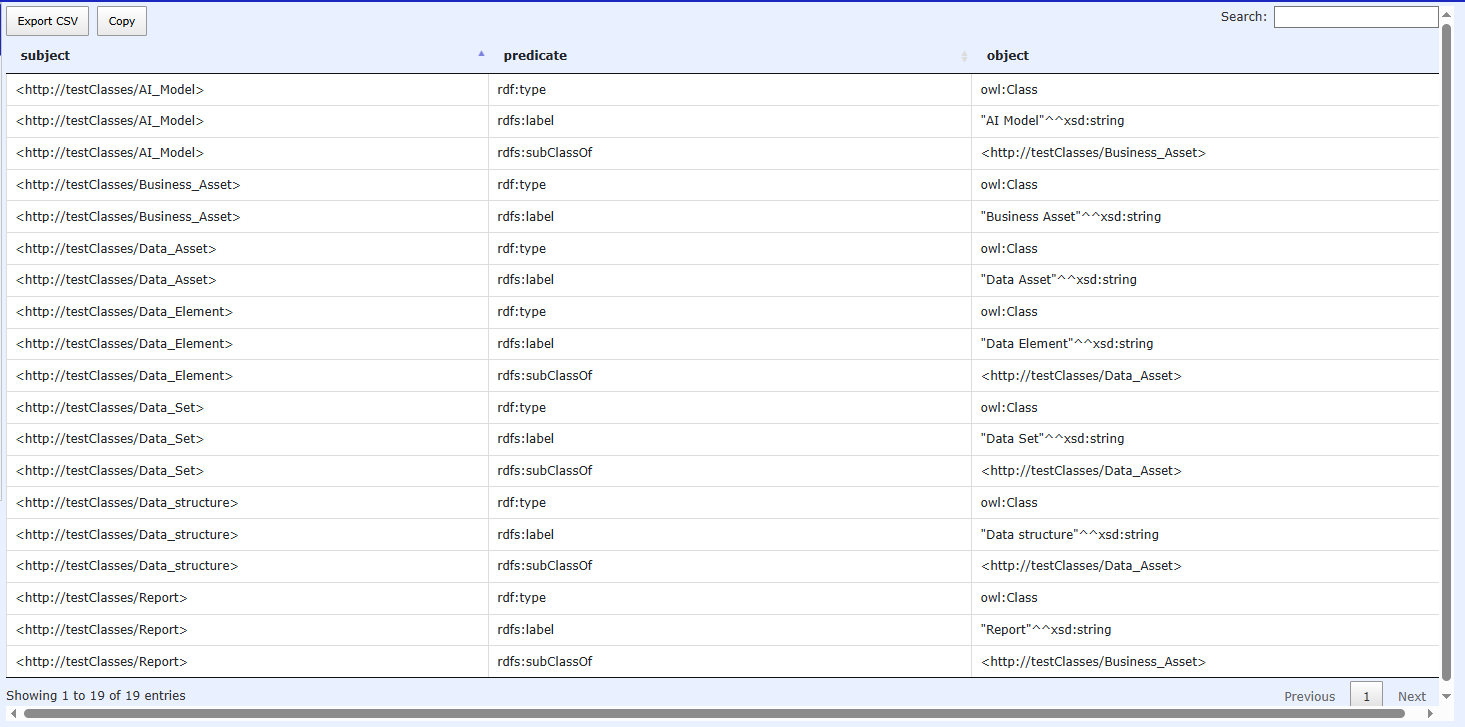

A table listing a sample of the generated triples will be displayed. We can now analyze the information in relation to our original dataset.

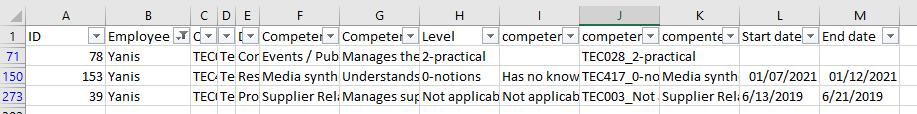

For example, let’s take the row corresponding to the employee Yanis in our data sheet.

We can see that the data describes Yanis as having three rows, each corresponding to a different competency he acquired, with distinct acquisition dates.

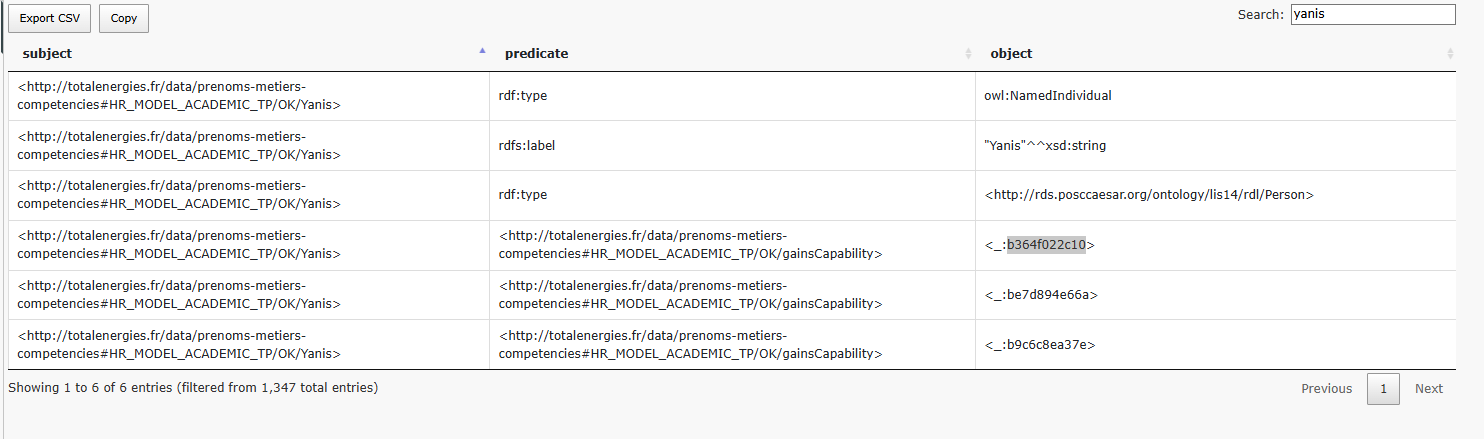

To explore this further, search for Yanis in the Show Sample Triples table.

We observe that Yanis is defined as an individual of type Person, with the label Yanis. This reflects the detailed mappings we previously configured, where:

  • The URI is generated using the Employee column value (Yanis),

  • The rdf:type is set to owl:NamedIndividual,

  • The rdfs:label is set using the Employee column as well.

We also see that he gains 3 capabilities, corresponding to the 3 rows in the data sheet.

This is the result of the mapping where:

  • The Employee node is linked to the gainOfCapability virtual column using the gainsCapability object property.

  • Each row creates a new instance (a blank node) of the gainOfCapability class.

  • The gainsCapability property connects Yanis to each of these capability gain events.

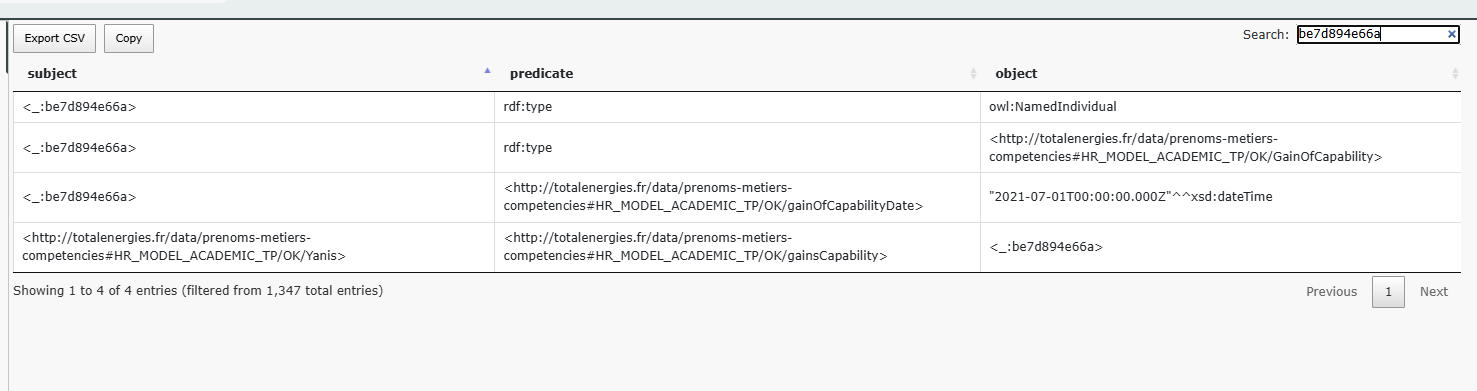

We can now search for one capability acquired by Yanis in the sample triples table, to view the corresponding triple.

We can see that this capability is represented as a blank node due to its URI pattern. Additionally, we observe that it is of type individual and gainOfCapability.

We can also see the datatype property we added, linking the gainOfCapability event to the corresponding startDate value in the data.

After verifying the mappings using the show sample triples preview, you can create the triples on the source by clicking the Create triples button in the Triples tab.

Add Data source: Databases#

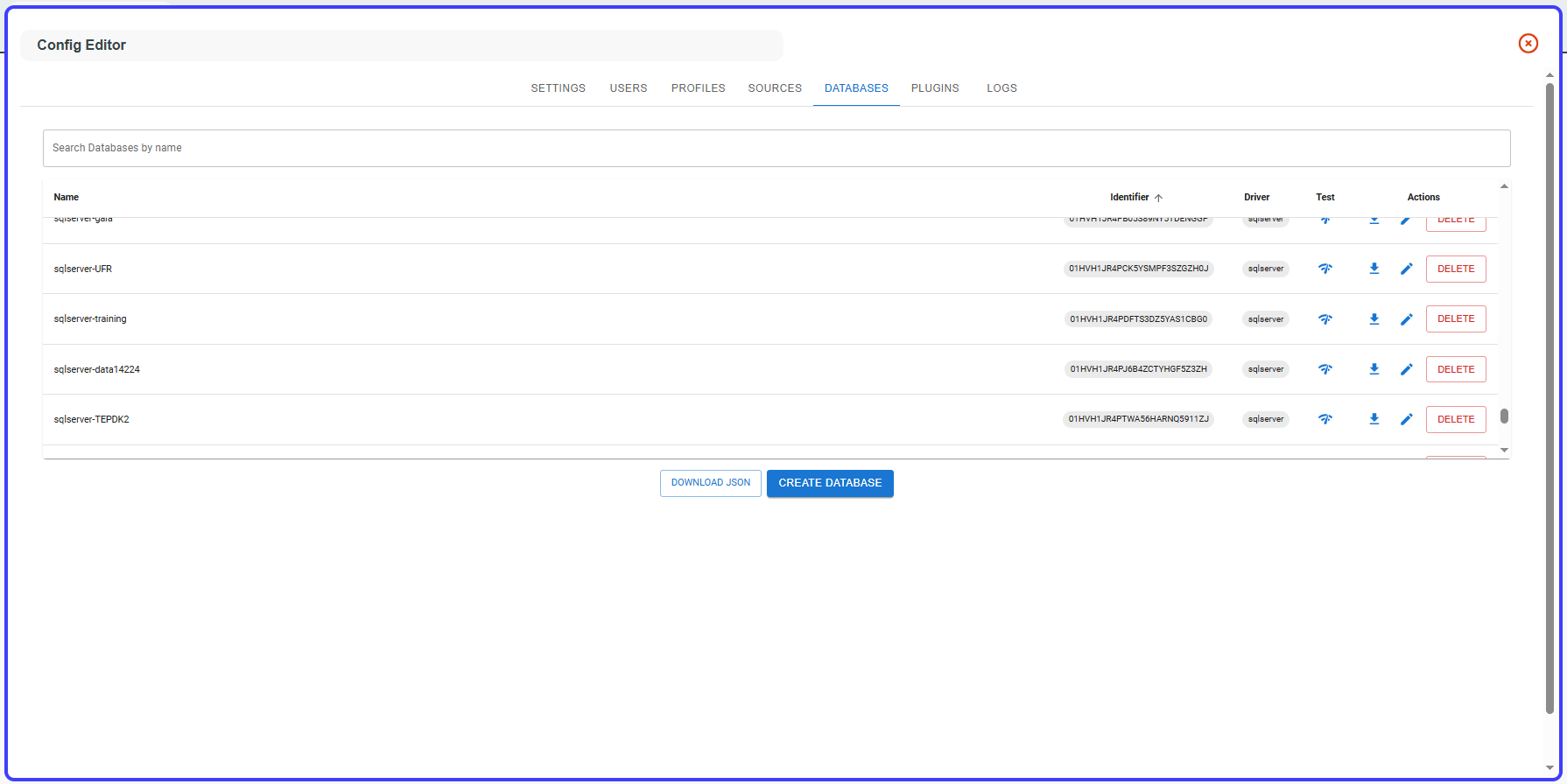

To import data for creating a knowledge graph from a database, you need to contact an administrator to configure your database in the Config Editor tool.

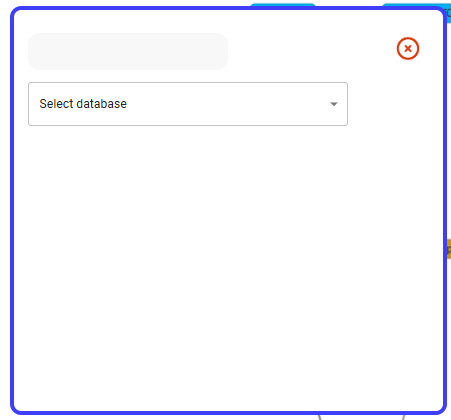

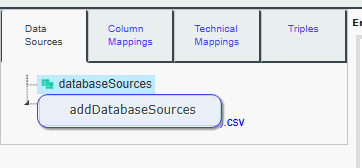

Then, go to the Mapping Modeler tool, open the Data Sources tab, right-click on Database Sources, and select your New Database name.

Once your database is added, it should appear in the Database Source Tree. Click on one of the database table to set it as the current data source for mapping.

Import classes#

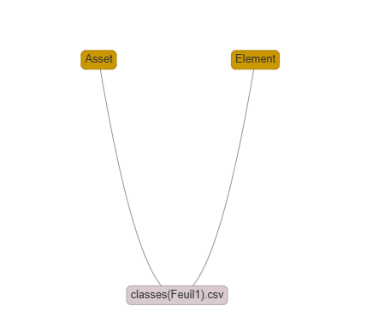

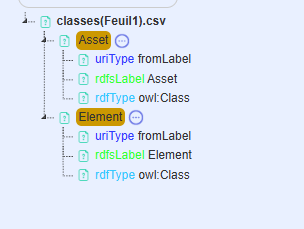

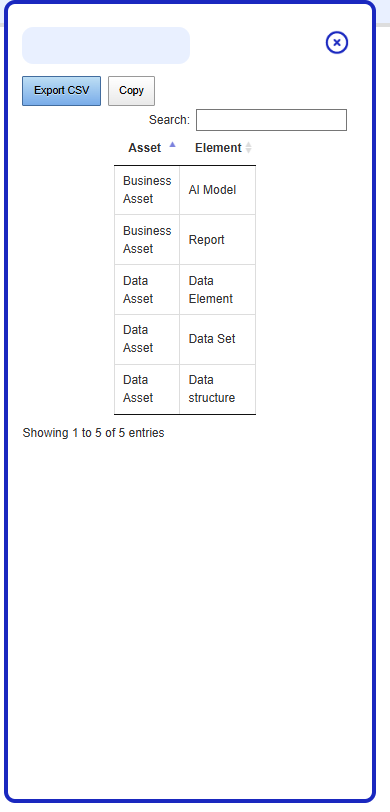

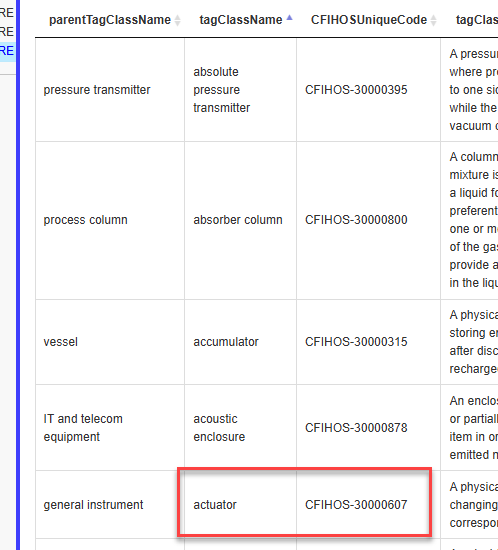

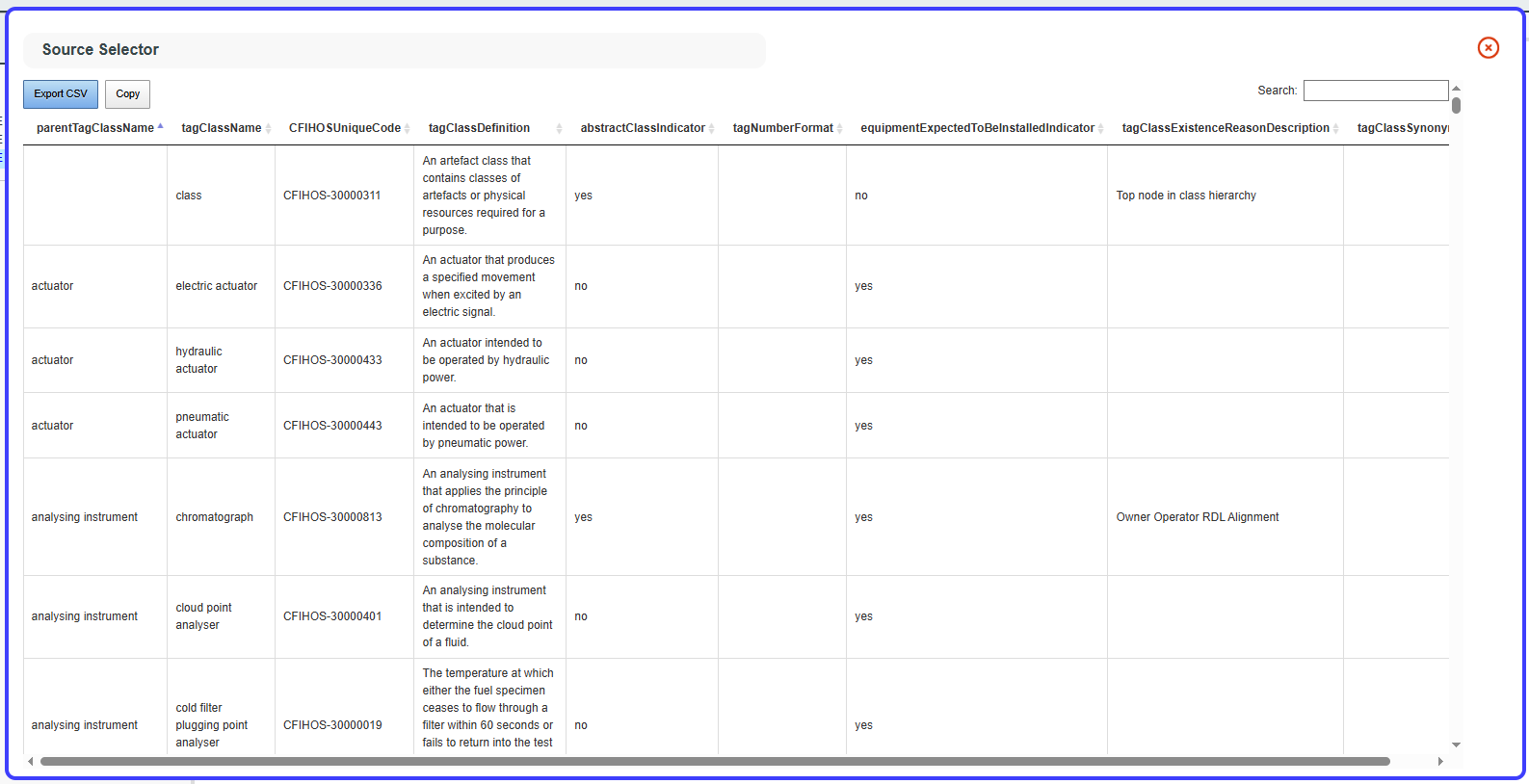

If you have a data source containing two columns, each representing a class, and you want to create classes from this file

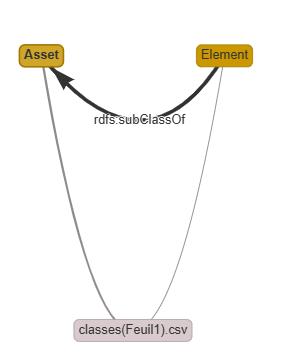

An asset is a class, and an element is a subclass of this asset, also defined as a class. For example, an AI model is a Business Asset, and both are classes.

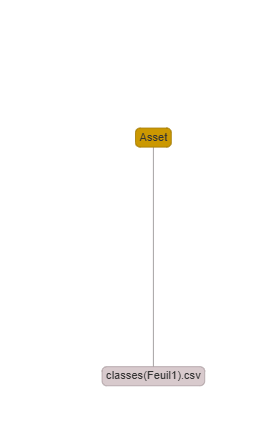

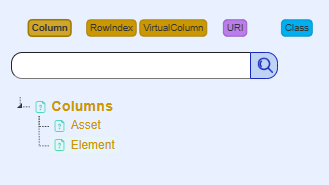

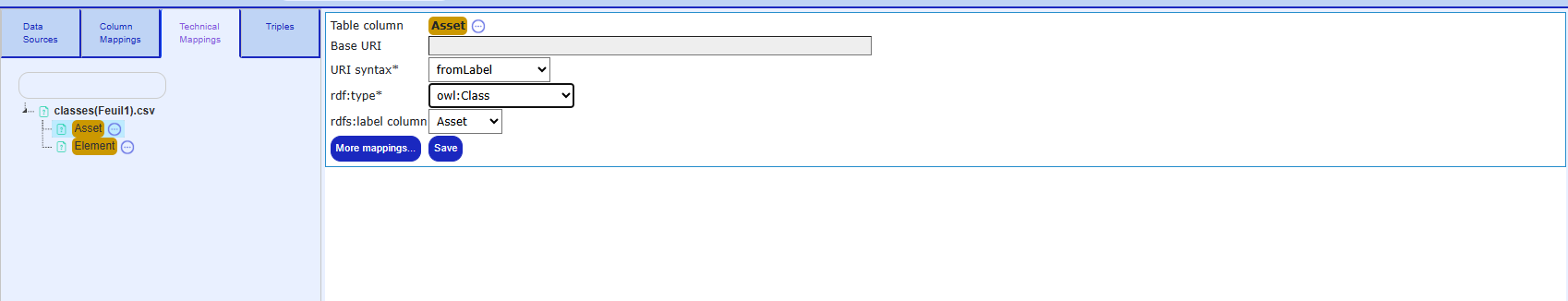

To do this, select the Column Mappings tab, then click on Asset.

Do not select a class from the search panel. Instead, click again on the Column button, and then choose Element.

Ctrl + click on Element, then Ctrl + click on Asset, and choose rdfs:subClassOf.

Then select the Technical Mappings tab. For both of them, designate them as owl:Class for rdf:type, fromLabel for URI syntax, and set their rdfs:label to themselves.

After filling out and saving both, here are the detailed mappings.

Preview the results by selecting the Triples tab and clicking on ‘Show Sample Triples’.

The class triples will be generated along with their hierarchy

Add transform#

Transforms allow you to apply JavaScript functions to each row of a column.

For example, in our tutorial source HR_MODEL_ACADEMIC_TP, we want to add a prefix to the URI by adding ‘employee-’ before each label for better clarity.

To do this, select the Technical Mappings tab, then choose Employee and click on ‘More Mappings’.

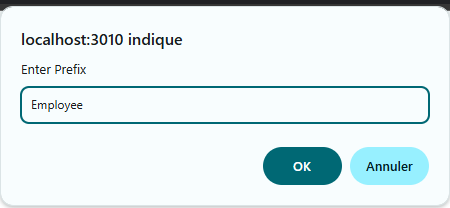

A pop-up will appear. Click on ‘Prefix URI’ and fill the pop-up with ‘Employee:’.

A JavaScript function will be auto-filled with instructions for prefixing the URI. If you click on ‘Test,’ you will see a sample of the triples produced with the added transform.

All Employee URIs are now prefixed with ‘Employee-’. Transforms can handle multiple transformations using JavaScript. The JavaScript function will be applied to all SLS mappings related to the column. To view the SLS mappings, go to the Triples tab and click on ‘View SLS Mappings.’

The SLS API for triple construction will apply the JavaScript function to each value in the column and for each mapping related to that column.

The parameters of this function will be as follows:

  • Value: The value of the column (e.g., the values from the Employee column).

  • Role: The role of the current SLS mapping for the Employee column, either as Subject(s), Predicate(p), or Object(o).

  • Prop: The property used in the current SLS mapping (useful for applying transforms only with specific property values).

  • Row: The current row (e.g., row[‘Col1’] provides the value of col1 in the current row).

  • Mapping: The current SLS mapping.

You can edit or delete a transform by right-clicking it in the detailed mapping tree.

Add Lookup#

Lookup replaces a column value with the value from another column, which can be from a different data source. Given the following data sheet.

The CFIHOSUniqueCode column provides a unique code for each tagClassName value. However, the parentTagClassName column does not have a code associated with it. A Lookup operation will fix this by, for each parentTagClassName value, finding the corresponding row in the tagClassName column and assigning the corresponding CFIHOSUniqueCode value from the matching row.

For example, if the parentTagClassName is actuator, the lookup will search for the tagClassName with the value actuator and replace each occurrence of actuator in parentTagClassName with CFIHOS-30000607 (the corresponding CFIHOSUniqueCode for that tagClassName).

This lookup action can be applied to another data source. It can also be used exclusively for the column acting as the subject, the column acting as the object, or both.

To add a lookup, first select the column that will be replaced by the lookup in the Technical Mappings tab, then click on more mappings.

Then add Lookup

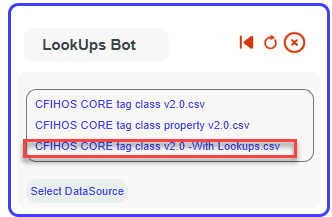

Then choose file containing the common values with your column (in this example tagClassName)

Choose the column containing the common values.

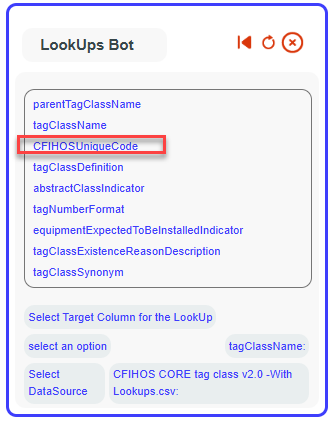

Choose the target column where the values of your column will be replaced by the values from this column.

Select whether the lookup (value replacement) will be applied when the chosen column (parentTagClassName) is used as the subject, the object, or both in the mapping.

The lookup is now saved. You can edit or remove it by right-clicking on it in the detailed mapping tree.

Here are the resulting triples for this lookup. (show sample triples).

The URIs now correctly use the CFIHOS codes obtained through the lookup, while the rdfs:label—in cases where parentTagClassName is used as an object—still reflects the original column values.

Use column as property for triples#

Work in progress
